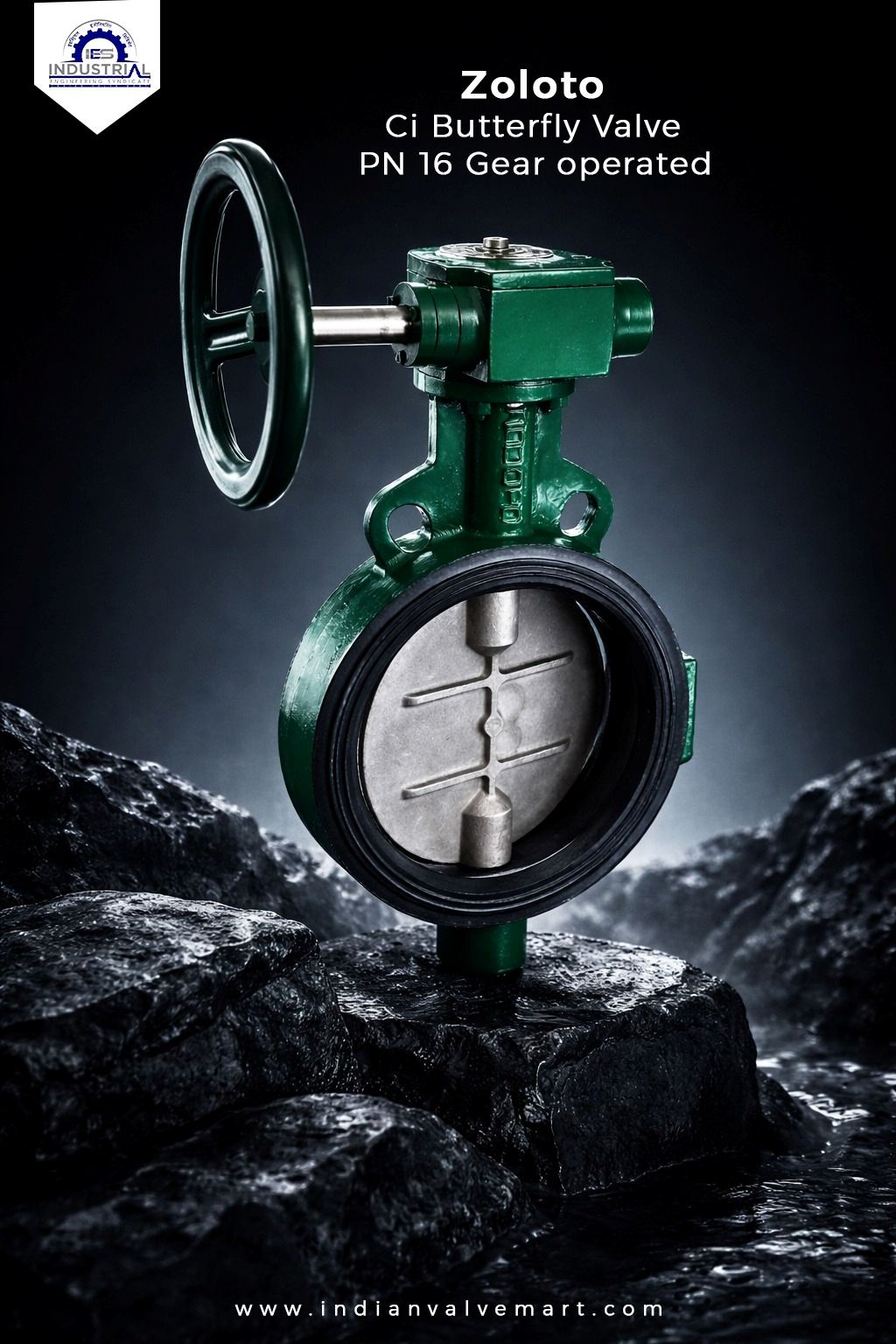

🔹 Zoloto CI Butterfly Valve – Product Overview

Zoloto Cast Iron (CI) Butterfly Valves are designed for efficient flow control and isolation in pipelines. With their quarter-turn operation, compact design, and lightweight construction, they are an ideal choice for a wide range of industrial and utility applications. Built with precision, these valves ensure tight sealing, smooth operation, and durability at an economical cost.

🔹 Key Features

• Body Material: Cast Iron (IS 210 Gr. FG 200)

• Disc: CI / Ductile Iron / Stainless Steel (as per requirement)

• Seat: EPDM / Nitrile / Neoprene / PTFE lined

• Design Standard: IS:13095 / API 609

• End Connection: Wafer / Lug / Double Flanged

• Operation: Lever, Gear Operated, or Actuator Operated

• Coating: Fusion Bonded Epoxy for corrosion protection

🔹 Technical Specifications

• Size Range: 40 mm to 1000 mm

• Pressure Rating: PN 1.0 / PN 1.6 / Class 150

• Test Pressure:

  • Body Test: 1.5 × PN

  • Seat Test: 1.1 × PN

• Suitable Media: Water, Air, Oil, Sewage, Slurry, Non-corrosive Fluids

• Temperature Range: Up to 120°C (with elastomer seat), up to 200°C (with PTFE seat)

🔹 Applications

• Water Supply & Distribution

• Sewage & Irrigation Systems

• HVAC & Fire Fighting Systems

• Chemical & Process Industries

• Oil & Gas Pipelines

⚙️ Zoloto CI Butterfly Valves are trusted for their durability, easy operation, and leak-proof performance, making them a preferred solution for both utility and industrial applications.
