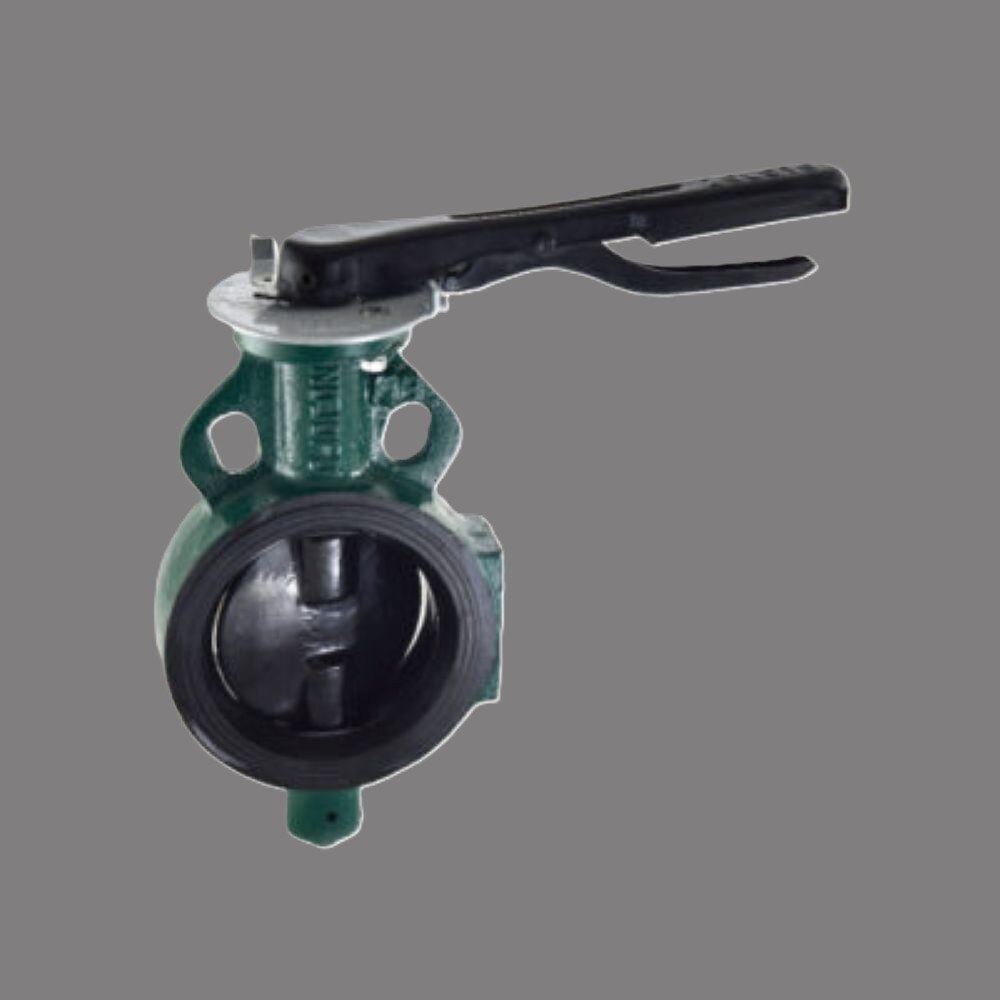

Zoloto Cast Iron (CI) Butterfly Valves are designed for efficient flow control and isolation in pipelines. With their quarter-turn operation, compact design, and lightweight construction, they are an ideal choice for a wide range of industrial and utility applications. Built with precision, these valves ensure tight sealing, smooth operation, and durability at an economical cost.
🔹 Key Features
Body Material: Cast Iron (IS 210 Gr. FG 200)
Disc: CI / Ductile Iron / Stainless Steel (as per requirement)
Seat: EPDM / Nitrile / Neoprene / PTFE lined
Design Standard: IS:13095 / API 609
End Connection: Wafer / Lug / Double Flanged
Operation: Lever, Gear Operated, or Actuator Operated
Coating: Fusion Bonded Epoxy for corrosion protection
🔹 Technical Specifications
Size Range: 40 mm to 1000 mm
Pressure Rating: PN 1.0 / PN 1.6 / Class 150
Test Pressure:
Body Test: 1.5 × PN
Seat Test: 1.1 × PN
Suitable Media: Water, Air, Oil, Sewage, Slurry, Non-corrosive Fluids
Temperature Range: Up to 120°C (with elastomer seat), up to 200°C (with PTFE seat)
🔹 Applications
Water Supply & Distribution
Sewage & Irrigation Systems
HVAC & Fire Fighting Systems
Chemical & Process Industries
Oil & Gas Pipelines
⚙️ Zoloto CI Butterfly Valves are trusted for their durability, easy operation, and leak-proof performance, making them a preferred solution for both utility and industrial applications.
