🔧 Key Specifications
-
Design Standard: IS 13095 / BS EN 593 (BS 5155)
-
Type: Wafer Type
-
Pressure Rating: PN 1.6 (16 bar)
-
Maximum Working Temperature: 90°C
-
Body Material: S.G. Iron (IS 1570 Gr. 450/10)
-
Disc Material: S.G. Iron or Stainless Steel (CF8 / CF8M)
-
Stem: Two-piece design, precisely guided between PTFE/Bronze bushes
-
Sealing: Integrally molded rubber lining (EPDM / Nitrile / Neoprene / Viton / Silicon)
-
End Connections: Compatible with flanges as per BS 10 Table D, E, F, H, DIN, PN 10, PN 16, PN 25, PN 40, ASA 150, ASA 300, IS 778, IS 6392 Table 17, and IS 1538
-
Operation: Lever Operated (for sizes up to 150 mm)
🛠️ Applications
These butterfly valves are suitable for:
-
Water Supply Systems: Controlling water flow in pipelines.
-
Oil and Gas Pipelines: Regulating the flow of oil and gas.
-
Air Handling Units: Managing air flow in HVAC systems.
-
Industrial Processes: Used in various industrial applications requiring reliable shut-off valves.
📏 Available Sizes & Dimensions

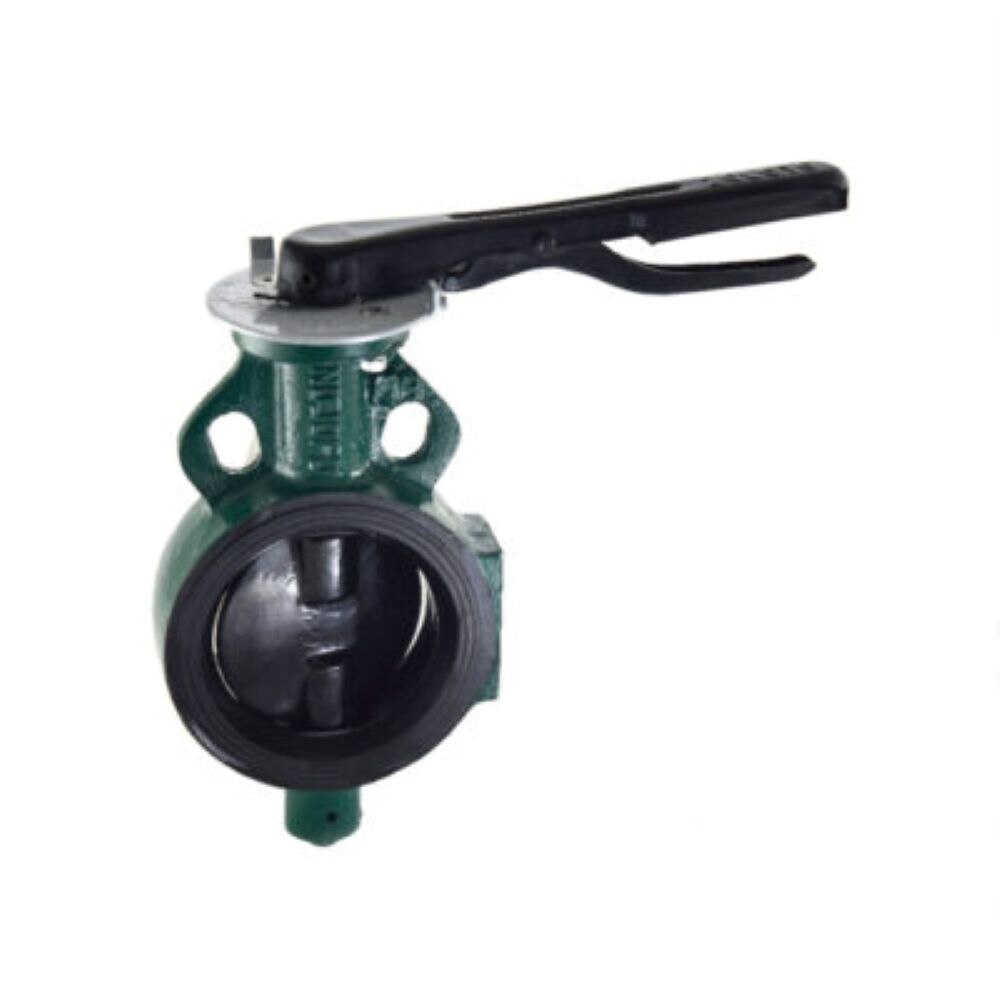

The Zoloto 1078 Butterfly Valve is available in various sizes, each with specific dimensions:
-
15 mm (1/2"): Length: 50 mm, Width: 40 mm, Height: 106 mm
-
20 mm (3/4"): Length: 57 mm, Width: 43 mm, Height: 132 mm
-
25 mm (1"): Length: 67 mm, Width: 47 mm, Height: 132 mm
-
32 mm (1 1/4"): Length: 76 mm, Width: 62 mm, Height: 166 mm
-
40 mm (1 1/2"): Length: 87 mm, Width: 68 mm, Height: 176 mm
-
50 mm (2"): Length: 104 mm, Width: 80 mm, Height: 216 mm
-
65 mm (2 1/2"): Length: 139 mm, Width: 100 mm, Height: 216 mm
-
80 mm (3"): Length: 155 mm, Width: 110 mm, Height: 280 mm
-
100 mm (4"): Length: 177 mm, Width: 124 mm, Height: 280 mm
