Audco Valve

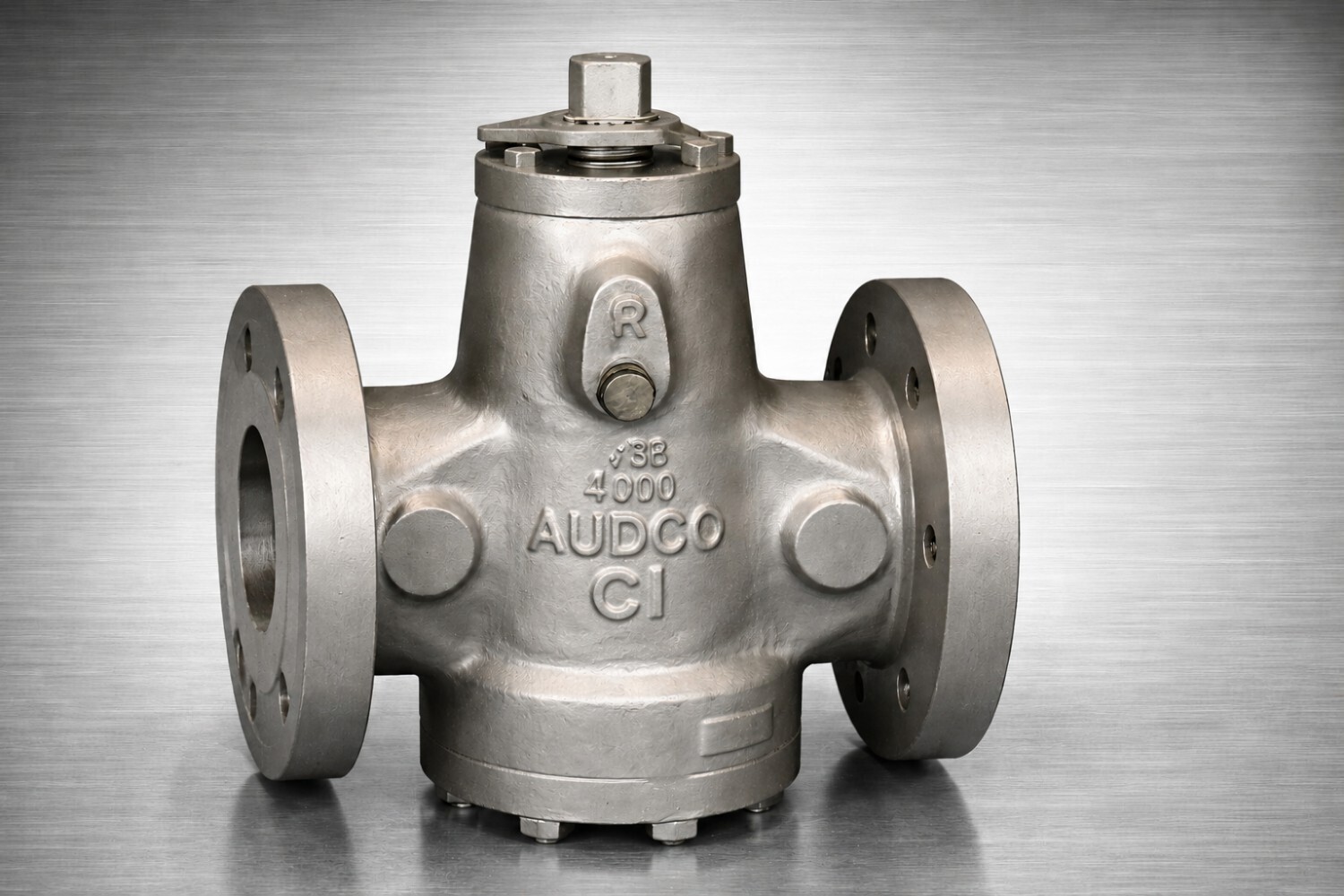

Audco CI Plug Valve Flange End

In stockcod not available
Phone Number

08048037463

Please keep 0 before dialling the number.

Mon-Thu: 10 AM - 2 PM • Fri: 3 PM - 7AM

Other Website Visit our other website
Address 3489 Ground Floor Gali Bajrang Bali Near Union Bank

Delhi, India, 110006

Description

AUDCO Cast Iron (CI) Plug Valves are robust quarter-turn valves designed for reliable isolation and flow control in water, air, gas, oil, and utility services. The valve uses a tapered or cylindrical plug that rotates 90° to open or close the flow passage, ensuring quick operation and tight shutoff. Design Standards Design & Manufacture: IS 13095 / BS 5158 (as applicable) Face-to-Face: Manufacturer Standard / Relevant IS Standards Testing & Inspection: IS 13095 / API 598 Material of Construction (MOC) Body Cast Iron (CI) Plug Cast Iron / Ductile Iron Nickel-Plated Plug (optional) Stem Carbon Steel / Stainless Steel Bushes & Seals PTFE / Lubricated Sleeve Type Elastomer Seals (depending on design) Pressure Ratings PN 10 PN 16 Suitable for low and medium-pressure applications Size Range 15 mm (½“) to 300 mm (12“) Larger sizes available on request Temperature Range –10°C to +120°C (standard service) Higher temperatures available with special sealing materials End Connections Flanged Ends Screwed Ends (small sizes) Available as per IS / ANSI flange standards Valve Design Lubricated Plug Valve Sleeved Plug Valve Quarter-Turn Operation Full Port Flow Design Operation Types Lever Operated Gear Operated (larger sizes) Key Features ✔ Quick 90° open-close operation ✔ Tight shutoff performance ✔ Low pressure drop due to full port design ✔ Compact and rugged construction ✔ Easy maintenance ✔ Long service life ✔ Suitable for bidirectional flow Advantages ✔ Simple and reliable operation ✔ Compact design requiring less space ✔ Suitable for frequent operation ✔ Good sealing performance ✔ Economical for utility applications Applications Water Distribution Systems HVAC Systems Air Lines Fuel Oil Systems Industrial Utility Services Chemical Plants (non-corrosive media) Fire Protection Systems Summary AUDCO CI Plug Valves are dependable quarter-turn valves offering quick operation, low pressure drop, and reliable shutoff. Their rugged cast iron construction and simple design make them ideal for water, air, oil, and general industrial utility services.
