SANT Forged Brass Ball Valve is designed for reliable quarter-turn isolation and flow control. It features a robust forged brass body, renewable PTFE seats, and a nickel-plated brass ball for smooth operation and dependable sealing Design & Construction Body: Forged Brass, IS 6912 FLB Connector: Forged Brass, IS 6912 FLB Ball: Forged Brass, nickel plated Stem: Machined brass, nickel plated Seats: Renewable PTFE Gland Seal/Packing: PTFE Gland: Brass Nut: Stainless Steel Lever: Aluminium Design: Two-piece construction Port: Full bore Operation: Lever operated End Connection: Screwed female BSP parallel threads Pressure Rating & Testing Pressure Rating: PN 25 Working Pressure: 25 kg/cm²(g) hydraulic Body Test Pressure: 40 kg/cm²(g) hydraulic Available Sizes 8 mm (¼“) 10 mm (⅜“) 15 mm (½“) 20 mm (¾“) 25 mm (1“) 32 mm (1¼“) 40 mm (1½“) 50 mm (2“) 65 mm (2½“) 80 mm (3“) 100 mm (4“) Features Quick quarter-turn operation Full-bore design for improved flow Reliable PTFE sealing Corrosion-resistant nickel-plated ball and stem Robust forged brass construction Compact two-piece design Easy installation and maintenance Suitable for a wide range of general industrial applications Typical Applications Water supply lines Plumbing systems HVAC applications Compressed-air lines General industrial pipelines Other compatible fluid services, subject to material and service-condition compatibility

Champion Gland Packing is used to control leakage from the stuffing boxes of pumps, valves, mixers, agitators and other rotary or reciprocating equipment. Champion offers a wide range of asbestos-free packing materials for different temperatures, pressures, fluids and operating conditions. Available Material Types PTFE-based packing – for chemical and corrosion-resistant applications PTFE-Graphite packing – low-friction and heat-dissipating applications Pure Graphite / Carbon packing – high-temperature and steam service Aramid-based packing – abrasive and slurry applications Synthetic and natural fibre packing – general industrial duties Combination packing – for demanding chemical and abrasive services. Construction Braided square-section packing Available in different fibre and material combinations PTFE, graphite or special lubricants used depending on the style Certain grades include reinforcement for demanding service Available as coils, lengths and, for selected products, pre-formed packing rings. Features Effective leakage control Low friction and reduced shaft/stem wear Good heat dissipation in graphite-based grades Excellent chemical resistance in PTFE-based grades High temperature and pressure capability in selected grades Good flexibility and dimensional stability Long service life with proper installation and adjustment. Applications Centrifugal pumps Reciprocating pumps Valve glands Mixers and agitators Rotary equipment Steam applications Water and condensate systems Oil and hydrocarbon service Chemical processing Abrasive and slurry applications. Common Champion Packing Grades Type Typical Use PTFE Packing Chemicals, acids and alkalis PTFE-Graphite Packing Pumps and general industrial applications Graphite Packing Steam and high-temperature service Carbon Packing High-performance pump applications Aramid Packing Abrasive media and slurry Natural/Synthetic Fibre Packing Water and general-purpose applications For example, Champion Style 3116 is a graphited natural-fibre packing for general pump applications, while Style 668 is a high-purity expanded graphite packing suitable for demanding valve and pump services. Advantages Reduces process-fluid leakage Helps protect pump shafts and valve stems Reduces friction and wear Available for a wide range of industrial fluids Easy to cut and install Different grades can be selected for specific pressure, temperature and chemical conditions.

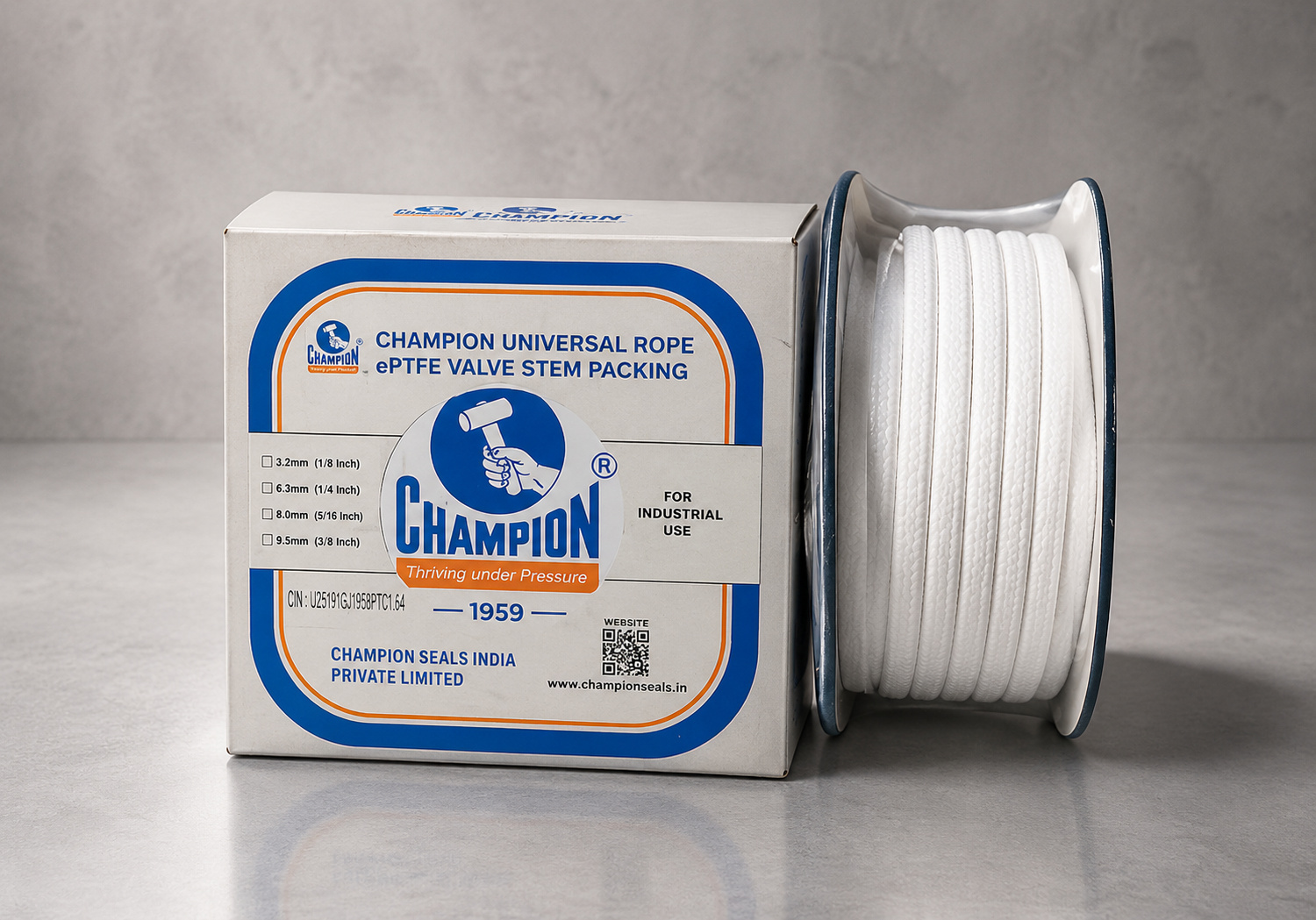

Champion Gland Packing is a braided sealing material used in the stuffing boxes of pumps, valves, mixers, agitators, and other rotating or reciprocating equipment to control leakage. Champion offers a wide range of packing materials, including PTFE, PTFE-graphite, graphite, carbon, aramid and natural/synthetic fibre-based grades, allowing selection according to the fluid, temperature, pressure and equipment type. Construction Depending on the specific Champion style, gland rope may be manufactured from: PTFE fibres PTFE-graphite fibres Expanded graphite Carbon fibres Aramid fibres Natural or synthetic fibres Metallic wire reinforcement for selected high-temperature grades The packing is generally supplied in square braided cross-sections, with some styles available in other constructions or as pre-formed packing rings. Typical Features Excellent sealing performance Reduces leakage from pump shafts and valve stems Low friction for smooth equipment operation Good resistance to wear and corrosion Available for high-temperature and high-pressure service Good flexibility and compressibility Long service life with proper installation Available in various sizes and material grades. Applications Centrifugal pumps Reciprocating pumps Valves Mixers and agitators Rotary equipment Steam systems Water and condensate services Oil and hydrocarbon applications Chemical and process industries. Common Champion Gland Packing Types Packing Type Typical Application PTFE Packing Chemicals, acids and alkalis PTFE-Graphite Packing Pumps and general industrial service Graphite Packing Steam and high-temperature applications Carbon Packing High-speed pump applications Aramid Packing Abrasive and slurry services Natural Fibre Packing Water and general-purpose pumps Champion's official range includes numerous specific styles for these applications. Example: Champion Style 3116 Champion Style 3116 is a natural-fibre, graphited gland packing intended as an economical general-purpose packing for rotary and reciprocating pumps. It is recommended for hot and cold water, condensates and hydraulic fluids within its specified service conditions, and is available in common sections from 6 mm to 25 mm. Advantages Helps control process-fluid leakage Protects shafts and valve stems Reduces friction and wear Available for a wide variety of industrial services Easy to cut and install Can be supplied as rope, coils or pre-formed rings, depending on the style.
