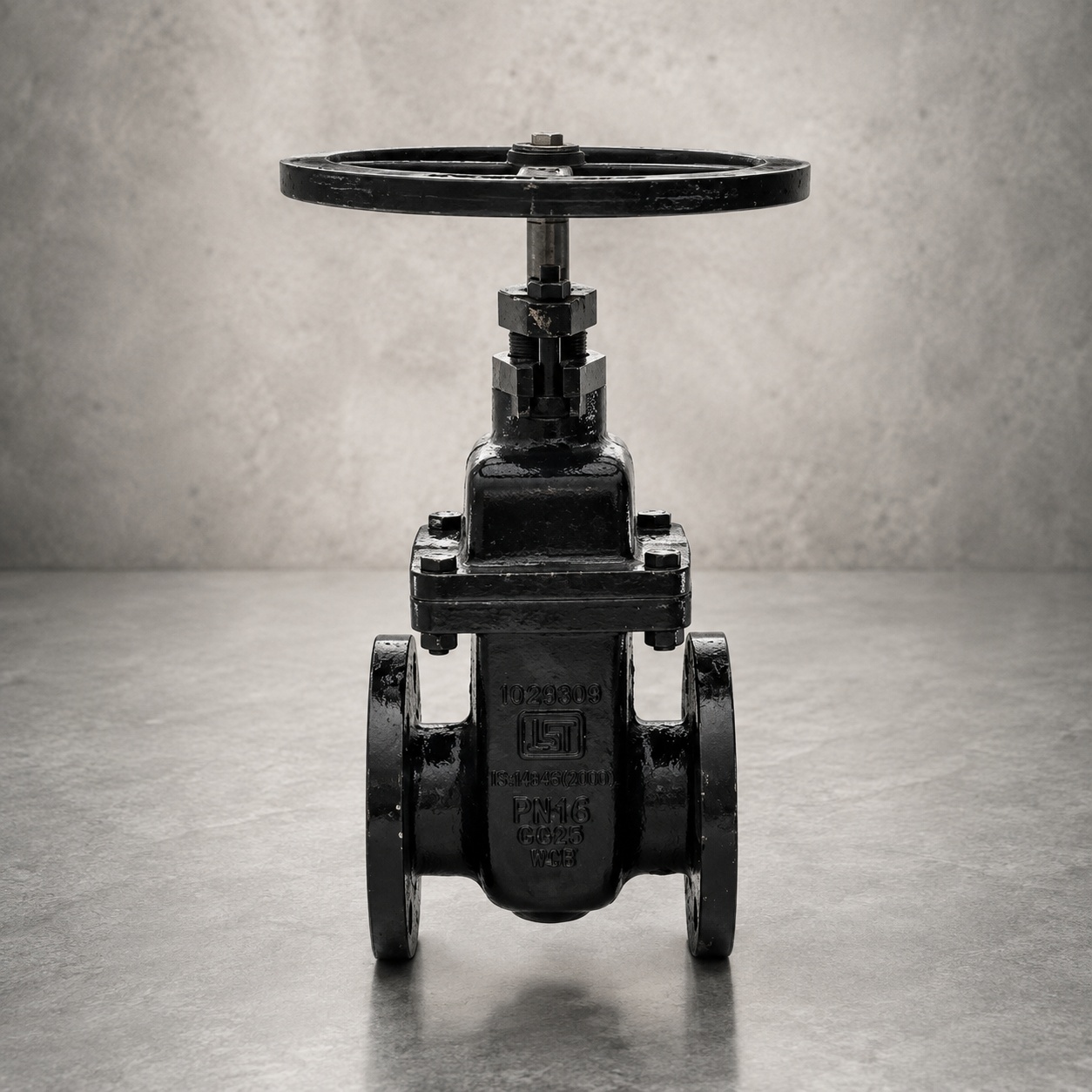

SANT Cast Iron Sluice Valves are designed primarily for water isolation applications. The CR-32 model features a bolted bonnet, inside screw and non-rising stem, with a solid wedge and renewable seating arrangement for reliable shut-off service. Technical Specifications Product Standard: IS 14846 Pressure Rating: PN 10, PD Type Body Material: Cast Iron, IS 210 Grade FG200 Bonnet: Bolted type Stem Design: Inside screw, non-rising stem Seat: Renewable seat Disc/Wedge: Solid wedge Trim: Copper-alloy rings with SS 12Cr12 stem Gland Packing: Rubber O-ring End Connection: Flanged ends as per IS 1538, FF drilled Application: Water service Testing Body Test Pressure: 1.5 MPa hydraulic Seat Test Pressure: 1.0 MPa hydraulic Test Certificate: Manufacturer's works test certificate supplied with each valve. Typical Materials of Construction Component Material Body, bonnet, wedge & handwheel Cast Iron IS 210 Gr. FG200 Stem Stainless Steel 12Cr12 Seat & wedge rings Leaded Tin Bronze IS 318 Gr. LTB2 Bolts & nuts Carbon Steel Gland packing Rubber O-ring Gasket Rubber Available Sizes 50 mm to 300 mm (2“ to 12“) are listed for the CR-32 model. Key Features Robust cast iron construction Reliable wedge-type shut-off Non-rising stem design Renewable seat for improved serviceability Flanged-end connection Suitable for water distribution and industrial water pipelines Simple handwheel operation IS-marked product range available. Applications Water supply systems Fire-water pipelines Irrigation systems Water treatment plants Industrial water lines General utility services

SANT Forged Brass Ball Valve is designed for reliable quarter-turn isolation and flow control. It features a robust forged brass body, renewable PTFE seats, and a nickel-plated brass ball for smooth operation and dependable sealing Design & Construction Body: Forged Brass, IS 6912 FLB Connector: Forged Brass, IS 6912 FLB Ball: Forged Brass, nickel plated Stem: Machined brass, nickel plated Seats: Renewable PTFE Gland Seal/Packing: PTFE Gland: Brass Nut: Stainless Steel Lever: Aluminium Design: Two-piece construction Port: Full bore Operation: Lever operated End Connection: Screwed female BSP parallel threads Pressure Rating & Testing Pressure Rating: PN 25 Working Pressure: 25 kg/cm²(g) hydraulic Body Test Pressure: 40 kg/cm²(g) hydraulic Available Sizes 8 mm (¼“) 10 mm (⅜“) 15 mm (½“) 20 mm (¾“) 25 mm (1“) 32 mm (1¼“) 40 mm (1½“) 50 mm (2“) 65 mm (2½“) 80 mm (3“) 100 mm (4“) Features Quick quarter-turn operation Full-bore design for improved flow Reliable PTFE sealing Corrosion-resistant nickel-plated ball and stem Robust forged brass construction Compact two-piece design Easy installation and maintenance Suitable for a wide range of general industrial applications Typical Applications Water supply lines Plumbing systems HVAC applications Compressed-air lines General industrial pipelines Other compatible fluid services, subject to material and service-condition compatibility

Champion Gland Packing is used to control leakage from the stuffing boxes of pumps, valves, mixers, agitators and other rotary or reciprocating equipment. Champion offers a wide range of asbestos-free packing materials for different temperatures, pressures, fluids and operating conditions. Available Material Types PTFE-based packing – for chemical and corrosion-resistant applications PTFE-Graphite packing – low-friction and heat-dissipating applications Pure Graphite / Carbon packing – high-temperature and steam service Aramid-based packing – abrasive and slurry applications Synthetic and natural fibre packing – general industrial duties Combination packing – for demanding chemical and abrasive services. Construction Braided square-section packing Available in different fibre and material combinations PTFE, graphite or special lubricants used depending on the style Certain grades include reinforcement for demanding service Available as coils, lengths and, for selected products, pre-formed packing rings. Features Effective leakage control Low friction and reduced shaft/stem wear Good heat dissipation in graphite-based grades Excellent chemical resistance in PTFE-based grades High temperature and pressure capability in selected grades Good flexibility and dimensional stability Long service life with proper installation and adjustment. Applications Centrifugal pumps Reciprocating pumps Valve glands Mixers and agitators Rotary equipment Steam applications Water and condensate systems Oil and hydrocarbon service Chemical processing Abrasive and slurry applications. Common Champion Packing Grades Type Typical Use PTFE Packing Chemicals, acids and alkalis PTFE-Graphite Packing Pumps and general industrial applications Graphite Packing Steam and high-temperature service Carbon Packing High-performance pump applications Aramid Packing Abrasive media and slurry Natural/Synthetic Fibre Packing Water and general-purpose applications For example, Champion Style 3116 is a graphited natural-fibre packing for general pump applications, while Style 668 is a high-purity expanded graphite packing suitable for demanding valve and pump services. Advantages Reduces process-fluid leakage Helps protect pump shafts and valve stems Reduces friction and wear Available for a wide range of industrial fluids Easy to cut and install Different grades can be selected for specific pressure, temperature and chemical conditions.
