SS 304 Ball Valves (Flange End) are quarter-turn isolation valves manufactured from AISI 304 stainless steel for reliable on/off flow control in industrial piping systems. Designed with a precision-machined floating ball and PTFE seats, these valves provide bubble-tight shut-off, excellent corrosion resistance, low operating torque, and long service life. They are ideal for handling water, steam, air, oil, gas, chemicals, and other compatible process fluids. Design & Construction: Body Material: ASTM A351 CF8 (SS304) Ball Material: SS304, Mirror Finished Stem Material: SS304 Seat Material: PTFE (Teflon) / RPTFE Stem Seal: PTFE Packing with Graphite Seal (model dependent) Body Design: Two-Piece / Three-Piece Operation: Lever Operated / Gear Operated / Pneumatic / Electric Actuator Port Type: Full Bore End Connection: Flanged Ends (RF) Standards & Specifications: Design Standard: API 608 / ISO 17292 / ASME B16.34 Face-to-Face: ASME B16.10 Flange Standard: ASME B16.5 Testing & Inspection: API 598 Fire Safe: API 607 (optional models) Pressure Rating: Class 150 / 300 or PN16 / PN25 / PN40 (model dependent) Working Temperature: -20°C to +180°C (depending on seat material) Available Sizes: ½“ (15 mm) to 12“ (300 mm) Features: Quarter-turn operation for fast opening and closing Bubble-tight shut-off Full-port design for maximum flow Excellent corrosion resistance Precision-machined mirror-finished ball Blow-out proof stem Anti-static design (selected models) Low operating torque Easy maintenance and long service life Automation-ready with pneumatic and electric actuators Applications: Water Distribution Systems Steam & Condensate Lines Oil & Gas Industries Chemical & Petrochemical Plants Pharmaceutical Industries Food & Beverage Processing Dairy & Beverage Plants HVAC Systems Water & Wastewater Treatment Plants General Industrial Process Pipelines Advantages: Superior corrosion and chemical resistance Reliable leak-proof sealing Suitable for high-pressure industrial applications Hygienic design for clean process industries Low maintenance and extended operational life Compatible with manual and automated operation Manufactured in accordance with international quality standards for dependable industrial performance

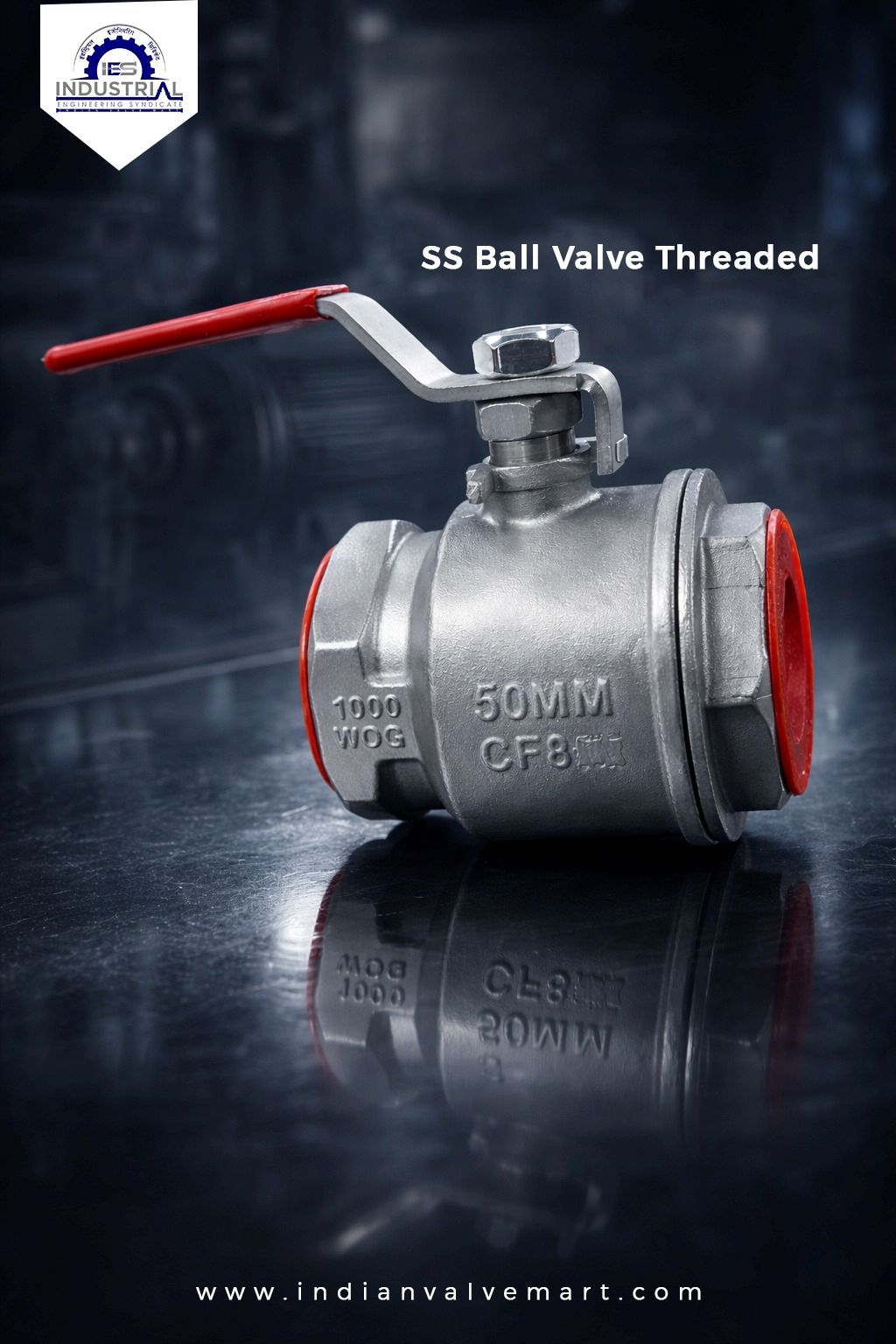

SS 304 Ball Valves (Screwed End) are quarter-turn isolation valves manufactured from AISI 304 stainless steel for reliable flow control of water, steam, air, oil, gas, chemicals, and other compatible fluids. Designed with precision-machined components and PTFE seats, these valves provide bubble-tight sealing, corrosion resistance, low operating torque, and long service life. They are widely used in industrial, commercial, food processing, pharmaceutical, and chemical applications. Design & Construction: Body Material: Stainless Steel ASTM A351 CF8 (SS304) Ball Material: SS304, Mirror Finished Stem Material: SS304 Seat Material: PTFE (Teflon) Stem Seal: PTFE Packing with Viton O-Ring (model dependent) Handle: Stainless Steel Lever with PVC Grip Operation: Lever Operated (Quarter Turn) Port Type: Full Bore / Reduced Bore End Connection: Screwed Ends (BSP / BSPT / NPT) Standards & Specifications: Design Standard: API 608 / BS 5351 / ISO 17292 Thread Standard: BSP, BSPT, NPT Testing & Inspection: API 598 Pressure Rating: PN40 / 1000 WOG (model dependent) Working Temperature: -20°C to +180°C (depending on seat material) Available Sizes: ¼“ (8 mm) to 4“ (100 mm) Features: Quarter-turn operation for quick opening and closing Bubble-tight shut-off Full-port design for minimum pressure drop Excellent corrosion resistance Precision mirror-finished stainless steel ball Blow-out proof stem Low operating torque Compact and lightweight construction Easy installation and maintenance Applications: Water Supply Systems Steam & Condensate Lines Compressed Air Systems Oil & Gas Distribution Chemical Processing Plants Pharmaceutical Industries Food & Beverage Processing Dairy & Beverage Plants HVAC Systems General Industrial Pipelines Advantages: Superior corrosion resistance Leak-proof sealing performance Hygienic construction suitable for clean process applications Long service life with minimal maintenance Suitable for high-pressure industrial applications Compatible with water, steam, air, oil, gas, and many chemicals Manufactured in accordance with international quality standards

SIR Sluice Valves are designed for positive isolation in water distribution, irrigation, firefighting, and industrial pipeline systems. The full-bore design allows unrestricted flow with minimal pressure loss when fully open, while providing reliable shut-off when closed. Manufactured from high-quality cast iron or ductile iron, SIR Sluice Valves are known for their robust construction, corrosion resistance, smooth operation, and long service life. Design & Construction: Body Material: Cast Iron (CI) / Ductile Iron (DI) Bonnet: Cast Iron / Ductile Iron Wedge: Metal Seated or Resilient Seated (EPDM Encapsulated) Stem Material: Stainless Steel (SS410 / SS420) Seat Ring: Bronze / Gunmetal or Resilient EPDM Operation: Handwheel, Cap Operated, or Gear Operated Stem Type: Non-Rising Stem (NRS) End Connections: Flanged Ends Standards & Specifications: Design Standard: IS 14846 / BS 5163 Face-to-Face: IS 14846 / BS 5163 Flange Drilling: IS 1538 / BS EN 1092-2 Testing Standard: IS 14846 / API 598 Pressure Rating: PN10 / PN16 Available Sizes: DN50 (50 mm) to DN600 (600 mm) Features: Full bore design for minimum pressure loss Bubble-tight sealing Corrosion-resistant epoxy-coated body Stainless steel stem for long life Low operating torque Smooth handwheel operation Maintenance-free resilient seated design Suitable for underground and above-ground installation Applications: Municipal Water Supply Water Distribution Networks Fire Fighting Systems Irrigation Projects Water Treatment Plants Pumping Stations Industrial Utility Pipelines HVAC & Infrastructure Projects Advantages: Reliable shut-off performance Durable and corrosion-resistant construction Long service life with minimal maintenance Easy installation and operation Suitable for potable water and industrial water systems Manufactured in accordance with Indian and international quality standards
