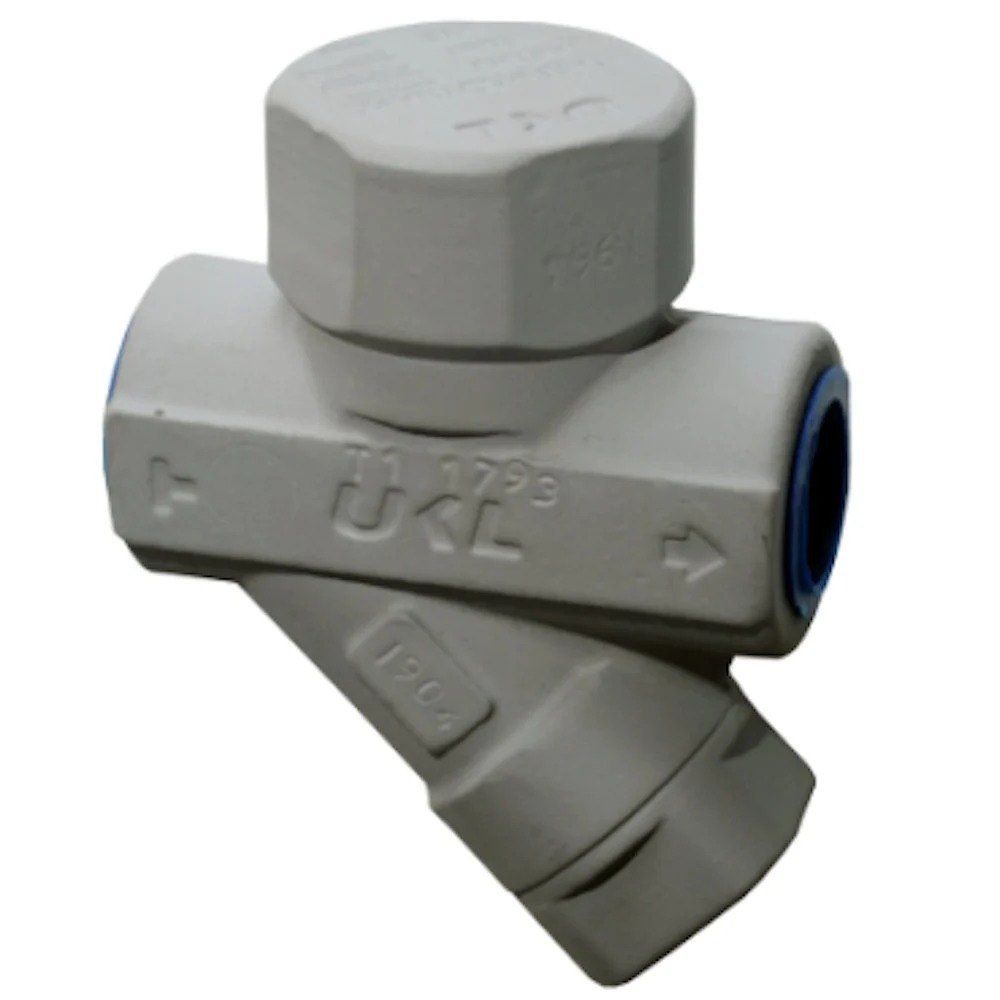

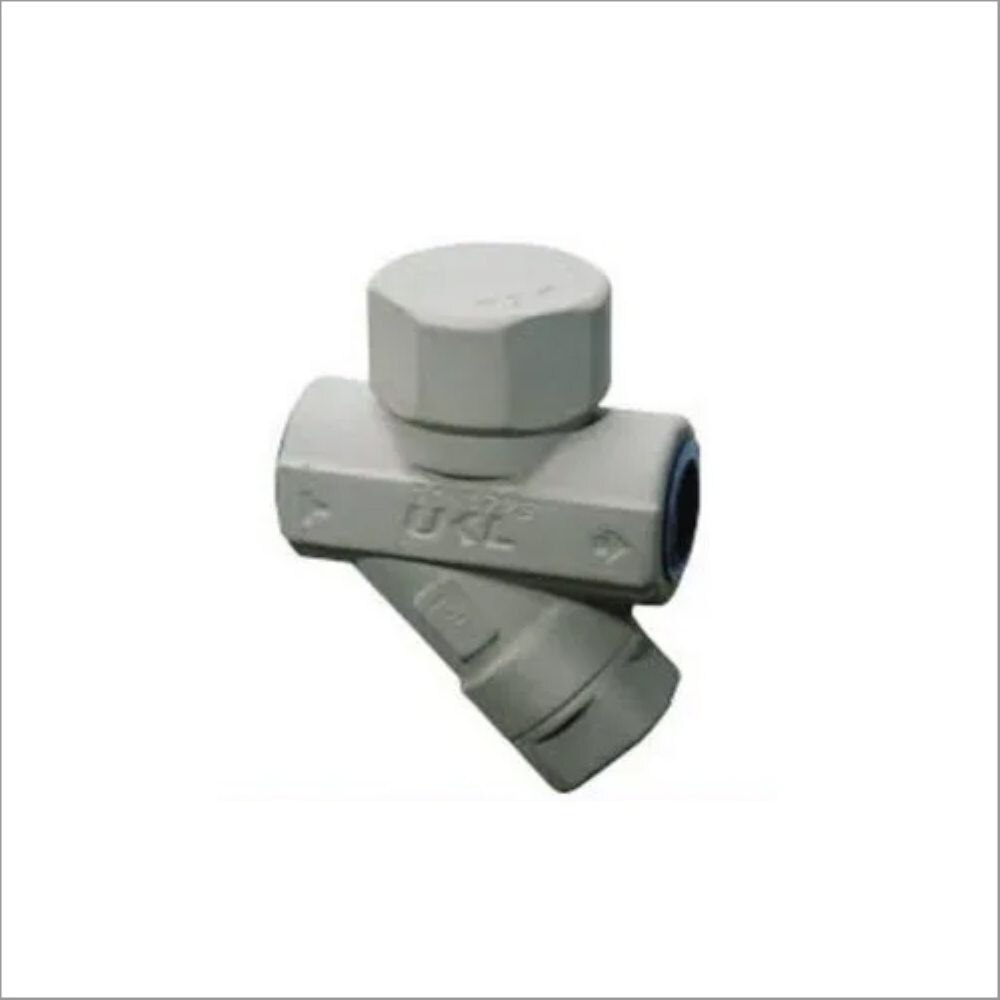

KLINGER offers a range of thermodynamic steam traps designed for efficient condensate removal in steam systems, particularly in high-pressure applications. These traps operate based on the principle of differential velocities between steam and condensate, ensuring effective discharge and preventing water hammer.
🔧 Key Specifications
-
Models Available:
-
PT-55 / PT-60: Suitable for pressures up to 42 bar and temperatures up to 450°C. Available in sizes ½", ¾", and 1", with options for BSPT, NPT, socket weld, and flanged connections.
-
DTF.2P: A compact design ideal for smaller installations.
-
UTD 120: Designed for high-pressure applications up to 51 bar and temperatures up to 425°C. Constructed from forged alloy steel (ASTM A182 Gr. F22), suitable for superheated steam lines.
-
UTD 51R: Features an integral flange and replaceable seat, facilitating inline maintenance.
-
-
Materials of Construction:
-
Stainless steel AISI 420 for components like the cap, body, and disc.
-
Hardened seat for extended service life.
-
Optional insulating covers for superheated steam applications.
-
-
Operating Conditions:
-
Maximum Pressure: Up to 51 bar (depending on model).
-
Maximum Temperature: Up to 450°C.
-
Minimum Operating Pressure: Typically 4 psi (0.28 bar).
-
Back Pressure: Maximum 80% of the operating pressure.
-
🛠️ Applications
KLINGER thermodynamic steam traps are ideal for:
-
Drip Lines: Efficient removal of condensate from main steam distribution lines.
-
Superheated Steam Systems: Suitable for applications requiring high-temperature operation.
-
Power Plants: Designed to handle high-pressure conditions effectively.
-
Industrial Processes: Applicable in various industries requiring reliable condensate drainage.
🔄 Maintenance Features
-
Universal Connector: Some models come with a built-in universal connector, allowing for trap removal without disrupting the pipeline.
-
Replaceable Seat Arrangement: Certain models feature a replaceable seat, facilitating easier maintenance and extending the trap's service life.
